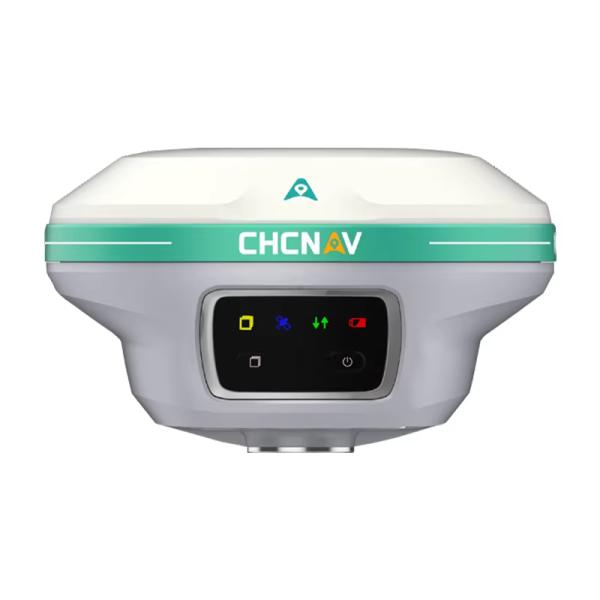

CHC T11 GNSS RTK Receiver AR L2C L2P GPS Surveying Equipment

Brand Name : CHCNAV

Model Number : T11 rover

Place of Origin : China

MOQ : 1 piece

Price : $1,999.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : GNSS RTK

Frequency : 1408 channels

BDS : B1, B2, B3

GPS : L1C/A,L1C,L2C,L2P,L5

Galileo : E1, E5A, E5B, E5AltBOC, E6

QZSS : L1C/A, L1C, L2C, L2E, L5

Supports : WIFI

Application : full-wave

Transmitting speed : 9.6Kbps, 19.2Kbps

Transmitting power : 0.5W, 1W, 2W adjustable

Working range : 5km typical, 8~10km optimal

Weight : 725g

Waterproof and dustproof : IP68

Contact Now

CHC T11 Dual-frequency Cheap Rtk 1408 Channels AR Survey GNSS GPS Receiver RTK

Product Paramenters
  • Precise Location Measurement: The CHCNAV T11RTK GPS measuring instrument provides accurate location data with an initialize reliability of 99.99% and can measure up to 1408 channels, making it ideal for precise geodesic and GNSS RTK surveying applications.
  • Durable and Water Resistant: With an IP68 rating, this instrument is waterproof and dustproof, ensuring it can withstand harsh environments and conditions, including extreme temperatures between -45°C to +75°C.
  • High-Quality Video Output: The device features a 2MP and 5MP camera, capable of capturing high-quality video at a frame rate of 25Hz, allowing for detailed and accurate visual data collection.
  • Customization Options: The CHCNAV T11RTK offers OEM customization support, allowing users to tailor the instrument to their specific needs and requirements.
  • Long-Lasting Battery Life: Powered by a battery, this instrument provides a reliable and portable solution for extended surveying operations, with a battery life that meets the needs of users in various environments.
TECHNICAL PARAMETER
project
content
index
Satellite tracking
Satellite system
GPS+BDS+Glonass+Galileo+QZSS
Support Beidou three generations, support Five star 21 frequency point
Satellite tracking
BDS: B1I,B2I,B3I,B1C,B2a,B2b*
GPS: L1C/A,L1C,L2C,L2P,L5
GLONASS: G1,G2,G3
Galileo: E1,E5a,E5b,E6*
QZSS: L1C/A,L1C,L2C,L5
IRNSS: L5*
SBAS: L1C/A*
Channel
1408
Initialization reliability
99.99%
No network continued test
support
Signal acquisition sensitivity
Typical value -162 dbm, the ability to capture weak signals is stronger
Accuracy
Static accuracy
Planar accuracy:±(2.5mm + 0.5×10-6×D)mm
Elevation accuracy:±(5mm + 0.5×10-6×D)mm
RTK accuracy
Planar accuracy:±( 8mm + 1×10-6×D)mm
Elevation accuracy:±(15mm + 1×10-6×D)mm
Tilt compensation accuracy
8mm + 0.3mm /° tilt (accuracy <2.5cm within 30°)
Video measurement accuracy
Typical 2~4cm, measuring distance 2~ 15m
GNSS+ Inertial navigation
IMU update rate
200Hz
Tilt Angle
0-60°
Insensitive super inertial navigation
No initialization is required, the INS will not exit after initialization
User interaction
Pilot lamp
1 satellite light +1 differential data light +1 static indicator light +1 power light
key
Static switch button + Power/Confirm button
web page
Support PC/ mobile web page
camera
Characteristic function
Video measurement, efficiency increase by 60%*
3D modeling, double the efficiency of internal and external work *
AR real navigation, put a point not lost
Visual lofting, one stick in place
pixel
2MP&5MP
Frame rate
25Hz
Field of view (H, V)
75°,75°
illuminance
Starlight camera, OmniPixel 3-GS technology
Full color picture at 0.01lux
Physical characteristics
dimension
Φ133.5mm*80mm
physical properties
weight
725g (battery included)
material
Magnesium alloy
Operating temperature
-45℃~+75℃
Storage temperature
-55℃~+85℃
Waterproof and dustproof
IP68 (30 minutes underwater 1 meter immersion)
anticollision
IK08 (subjected to the same mechanical impact as the 2.5kg steel ram without damage, resistance to 3m drops)
anti-condensation
100%
